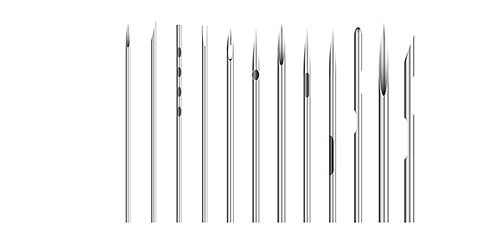

Stainless Steel Cannula
Parameter

SIZE OUTER DIAMETER INNER DIAMETER

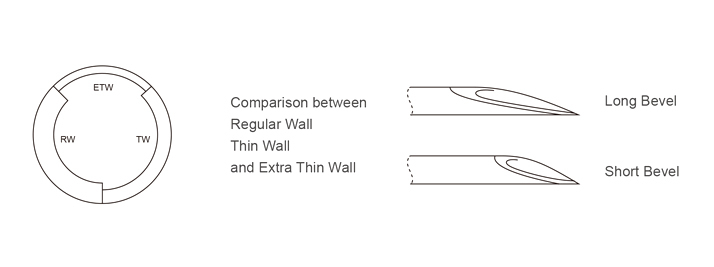

GAUGE NOMINAL MIN MAX REGULAR WALL THIN WALL EXTRA THIN WALL
MIN MIN MIN
30 0.30 0.298 0.320 0.133 0.165
29 0.33 0.324 0.351 0.133 0.190
28 0.36 0.349 0.370 0.133 0.190
27 0.40 0.400 0.420 0.184 0.241
26 0.45 0.440 0.470 0.232 0.292
25 0.50 0.500 0.530 0.232 0.292
24 0.55 0.550 0.580 0.280 0.343
23 0.60 0.600 0.650 0.317 0.370 0.460
22 0.70 0.698 0.730 0.390 0.440 0.522
21 0.80 0.800 0.830 0.490 0.547 0.610
20 0.90 0.860 1.920 0.560 0.635 0.687
19 1.10 1.030 1.100 0.648 0.750 0.850
18 1.20 1.200 1.300 0.790 0.910 1.041
17 1.40 1.400 1.510 0.950 1.156 1.244
16 1.60 1.600 1.690 1.100 1.283 1.390
15 1.80 1.750 1.900 1.300 1.460 1.560
14 2.10 1.950 2.150 1.500 1.600 1.727
13 2.40 2.300 2.500 1.700 1.956
12 2.70 2.650 2.850 1.950 2.235
11 3.00 2.950 3.150 2.200 2.464
10 3.40 3.300 3.500 2.500 2.819
