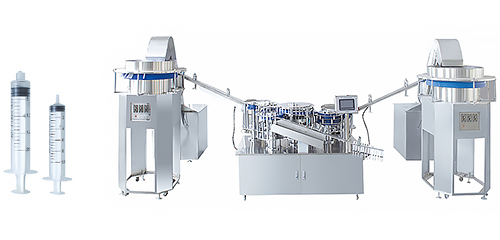

Automatic Syringe assembly
Characteristic
  • Machine for automatic assembly, detection,reject unquali ed product and other functions.
  • Centrifugal type feeding, low noise and good stability
Parameter
Assembling area 1ml 2-3ml 5ml 10ml 20ml 30ml 50ml
Assembling speed 180/min 200/min 250/min 250/min 160/min 150/min 120/min
Input A.C220V50HZ A.C220V50HZ A.C220V50HZ A.C220V50HZ A.C220V50HZ A.C220V50HZ A.C220V50HZ
Machine size 480x230x220 480x230x220 480x230x220 480x230x220 480x230x220 480x230x220 480x230x220
Power 2.5kw 2.5kw 2.5kw 2.5kw 2.5kw 2.5kw 2.5kw
Weight 1500 1500 1500 1500 1500 1500 1500
Air pressure 0.2-0.4MPa 0.2-0.4MPa 0.2-0.4MPa 0.2-0.4MPa 0.2-0.4MPa 0.2-0.4MPa 0.2-0.4MPa


Different specifications such as 1, 2.5, 3, 5, 10, 20, 30, 50, 60ml etc
Ordinary type luer slip, luer lock, two-parts syringe, with eccentric needles and other syringe products.
Customized according to the samples.
Microcomputer control, liquid crystal display (touch screen)
Timing with Japanese Mitsubishi Transducer small power consumption, low noise
Auto-stop when no material, feeding automatically by storage bins
High assembly speed, stable and reliable performance
Automatically weed out defective goods, plugging needles and non silicon oil spray
