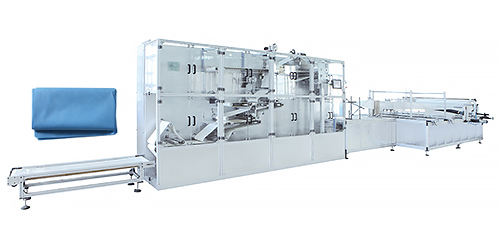

Non-woven bed Sheet Folding Machine
Characteristic
  • Can process all kinds of non-woven, laminating non-woven fabric, SMS, paper-plastic and other raw material
  • Folded width and longitudinally arbitrary,cutting length can be between 300-3000mm, length error ±1mm
  • Transverse folding can be one half, one-third, one-quarter, one-sixth, one-eighth
  • All the drives use the imported servo motor, high precision
  • Touch screen control
Parameter
Voltage Power Designed Speed Dimension Weight
380V50HZ 8.5KW 0-60m/min 10300*2400*2150mm 4000kg
