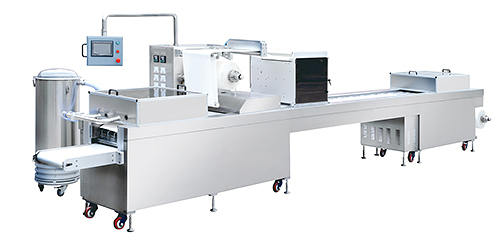

Automatic Packing Machine
Characteristic
  • Suitable for sensitive anti-pollution materials, such as disposable needle, syringe, transfusion ware etc.
  • Chinese and western medicine: panax, deer antler, pill etc.
  • Special local product, electric components, pneumatic component etc solid material.
Parameter
No. Item Technical parameter
1 Working frequency 6-12 times/min 1—20pcs/time
2 Capacity 2400-12000 (count on 4pcs/time , 10 times/min)
3 Forming size 375×375×50(mm2) Max.
4 Stroke 20—400mm
5 Reference blister strip spec Ref spec.
(1) Needle: 20pcs/time
Syringe:1ml 11pc/time
2.5ml10-20pc/time
5ml 9-18pcs/time
10ml 8pcs/time
(2) size 192*120*60 2pcs/time, 11times/min
6 Packing material Up film: 0.02—0.1×400mm(Dialysis paper, ALU foil)
Low film: 0.1—0.3×420mm (Soft film, hard PVC)
Fill roll inner diameter:φ70-76mm
Fill roll outer diameter:φ250mm
7 Heat power Up and lower forming heat: 6kw
Heat seal: 6kw
8 Main motor Servo motor 1.5Kw
9 Air compressor >0.2m3 (Customer self equip with it)
Pressure: 0.4—0.6Mpa
10 Vacuum pump Vacuum degree -0.09Mpa
11 Mould coolant Tap water or recycle water 60L/h
12 Overall size 5000×980×1860(L×W×H)
13 Weight About 2200kg
