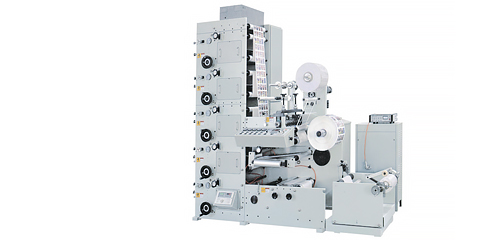

Flexographic Paper Printing
Characteristic
  • The main motor adoptes imported inver to govern a stepples speed adjustment.
  • Feeding and rewinding are controlled through magnetic particle brake and cutch(Japanese Mitsubishi auto tension controller).
  • Un winder system is controlled by edge guide sensor.
  • Adopt ceramic anliox roller which offers durability,wear resistance and corrosionresistance,also is more effcient on production by reducing the times of changing rollers.
  • The printing units are all equipped with a group of infrared.dryers respectively.
  • Each IR dryer device of printing unit is interchangble to UV dryer.
  • Un winder and re winder adopt air core holder.
  • The printing unti can register in 360 degress.Each printing unti can be independently geared and lossen to have rest of untis continue printing.
  • The roll feeding, printing,UV vanish,auto infrared drying,laminating and rewinding can be processed in one pass.It has characterized by wide application,fast printing speed and high economic effciency Ink will not contaminate environment.So it is an idea printing machine for the business form,Tag and high end pressure sensitive label.
  • The inking roller will be automatically off impression when press stop and ritate at lower speed in order to keep the ink from being drying.
Parameter
Model ZB-320 ZB-450
Max.Web width 320mm 450mm
Max.printing width 320mm 440mm
Printing repeat 180-380mm/min 180-380mm/min
Color 2~6 2~6
Thickness of substrate 0.1-0.3 0.1-0.3
Machine speed 10m-80m/min 10m-80m/min
Max.unwind diameter 600mm 600mm
Max.rewind diamete 550mm 550mm
Main motor capacity 2.5kw 2.2kw
Main power 380V/AC 3 phase 50Hz 380V/AC 3 phase
Overal dimensions 3000x1500x3000mm 3000x1700x3000mm
Machine weight 2000kg 2300kg
