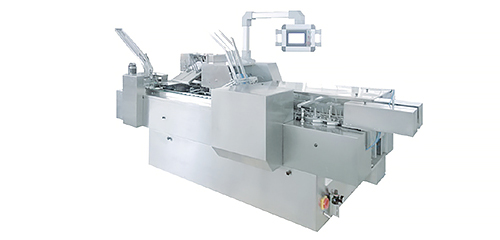

Automatic Cartoning
Characteristic
  • This machine is suitable for medicine, Alu-plastic plate cosmetic, artwork, foodstuff as well as analogous objects package.
  • Automatically execute folding, box forming, open box, cartoning, printing, sealing.
  • Adopt with PLC human-machine interface, photoelectric control parts movements, in case something abnormal happens, will stop running automatically and displaying the reason for clearing.
  • It can be using separately, also can connect with blister packing machine or other equipments made up a production line.
Parameter
Usage and Apply Scope

Automatic cartoning machine is applied for medicine, foodstuff, cosmetic and small vessel packing, can pack different specifications blister, Chinese medicine, little long shaped articles and foodstuff packed into the specified box, and seal it. Also we can replace machine periodically accord to clients requirements. short mould manufacture periodicity, ease installment and debug, is applicable for singularity volume-produce and different items for few batch produce.


Normal Use Condition
Surrounding Temperature: 20±10℃
Compress Air: 0.5Mpa, Circulation over 0.6m3/min
Operating personnel: 1—2 person

Main Structure and Mechanism Working Principle
Machine doing series movements, imitate human to automatic finish unload box, open box, seal box. Working flow chart as following:
The vacuum in the machine was supplied by XD-020 vacuum pump or ZL112 vacuum maker.(SMC)



Main Technology Parameters


Main Motor Power 1.5KW
Max Capability 50~120 boxes/min
Overall Size 3200×1350×1700mm (L*W*H)
Weight About 1200Kg
Box Size Max: 200×80×70mm (L*W*H)
Min: 50×25×12mm (L*W*H)
Paper Max: 260×180mm (L*W)
Min: 110×100mm (L*W*H)
Noise <80db
